ZS Vibration Screener

ZS Drum Vibration Screener

Description

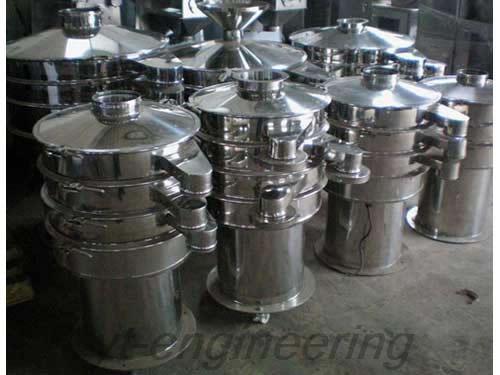

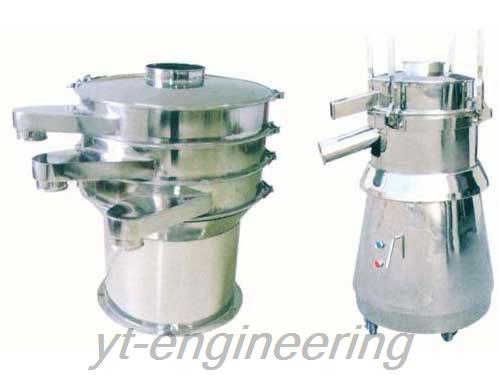

Vibrating screen separator is also known as vibrating filter, vibration sieve or sieve shaker. It can be employed both with powdered and liquid materials and is applicable for line production. It is the ideal equipment for sieving and continuous discharging of materials with different particles particle proportions. ZS circular vibrating screen separator is composed of hopper, vibration chamber, coupler and motor. The vibration chamber of vibrating filter consists of eccentric gear, rubber software, main shaft and bearing. Adjustable eccentric heavy hammer driven by motor can be conveyed to the central line of main shaft. In the unbalanced state, it will produce centrifugal force to change the intensity of materials in vibrating screen separator and form track eddy. The amplitude of heavy hammer regulator can be adjusted according to different materials and sieves.

Features of ZS Circular Vibrating Filter
1. It is featured with compact structure, small volume, no dust, low noise, high quality, low energy consumption, convenient move and maintenance, etc.
2. The simple management and high production outputs make them suitable for several industrial processes.
3. The vibrating screen separator generates a vibrating horizontal and vertical motion whose intensity can be adjusted in both directions.
4. This vibrating filter is also possible to adjust, by means of an inverter, the speed and frequency of the vibrations themselves to optimize the operation of the machine according to the type of material handled.

Parameters of ZS Circular Vibrating Screen Separator

Model ZS-350 ZS-515 ZS-650 ZS-800 ZS-1000 ZS-1500
Production Capacity 40-500 60-600 80-800 150-1200 300-2000 350-2800
Meshes 12-200 12-200 12-200 12-200 5-325 5-350
Power of Motor (kw) 0.55 0.55 0.55 0.75 1.5 2.2
Revolving Speed of Main Shaft (r. p. m) 1380 1370 1370 1500 1500 1500
Overall Dimensions (mm) 940 × 540 × 1060 710 × 710 × 1290 880 × 880 × 1350 1000 × 1000 × 1400 1100 × 1100 × 1200 1600 × 1600 × 1200
Weight (kg) 100 180 250 300 350 400

Jiangsu Yutong Drying Equipment Co., Ltd is a professional manufacturer and supplier of vibrating filters in China. In addition to vibration sieve or sieve shaker, we also provide drying machine, grinding machine, granulating machine, extractor and concentrator equipment. Our company has been awarded as “AAA” enterprise by Jiangsu International Credit Assessment Company. Our vibrating screen separators are highly appraised by customers worldwide.
