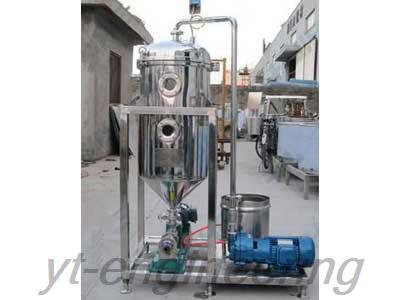

TQG Vacuum Degassing Vessel

TQG Vacuum Degassing Vessel

Description
TOG vacuum degassing vessel is also known as vacuum degassing tank. Juice after homogenizing can be degassed in vacuum state, which can prevent juice oxidation and lengthen its storage life. Vacuum degasser unit consists of vacuum degasser, vacuum pump and centrifugal pump. They make use of vacuum suction effect to eliminate air or oxygen in materials, to restrain oxidation and browning, and to improve the product quality. Moreover, vacuum degassing tank removes the gas attached to suspended scattered particle to prevent particle floating and effectively improve the appearance of products. TOG vacuum degassing vessel can also reduce the bubble produced in filling and high temperature sterilization, and reduce corrosion to the inner wall of vessel. Vacuum degassing tank is very important technological equipment in juice and food production.

Working Principle
The parts of TOG vacuum degassing vessel that contact with juice are made from stainless steel and medium hard edible rubber. When using this device, just open the configured vacuum pump and eliminate the air in the vessel. At the same time, materials are suctioned into the vacuum degassing tank through the feeding inlet. When materials are raised to a certain position, control valve will automatically control materials. We can observe and control the feeding speed through the sight hole of vacuum degassing vessel. When the vacuum degree in the vessel reaches the technological requirement, we can take out materials through the material outlet. If we keep the vacuum degree and the balance of feeding and discharging speed, we can continue producing.

Parameters of TQG Vacuum Degassing Tank

Model TQG-1 TQG-2 TQG-3 TQG-10 TQG-15
Processing Capacity 1000 L/H 2000 L/H 3000 L/H 10000 L/H 15000 L/H
Vacuum Degree While Working 6.4-8.7×10 pa
Total Power of Motor 5.2 kw 6.2 kw 6.2 kw 8 kw 8 kw
Boundary Dimension 1035 × 750 × 2840 1135 × 780 × 3040 1185 × 800 × 3140 1600 × 1700 × 3250 1750 × 1500 × 3500
Weight 270 kg 350 kg 450 kg 600 kg 800 kg

Note: We are able to provide vacuum degassing vessels according to customers’ requirements.
