DZG Sterile Single-Arm Rotary Vacuum Dryer

Description

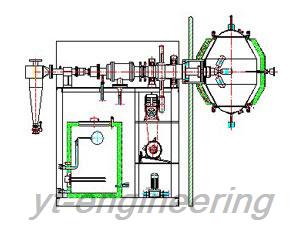

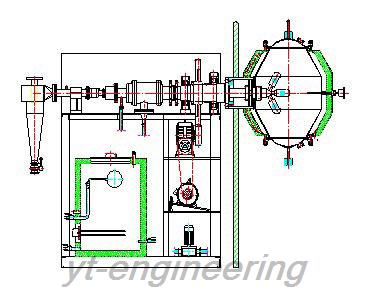

DZG rotary vacuum dryer is a kind of new type sterile drying equipment. Its tank is installed in the sterile workshop, and the transmission parts and supports are installed in the outside of the sterile room. The middle parts is separated by a wall, and sealed by the silicon sealing ring, so as to ensure normal operation and production in the sterile area. This single-arm vacuum drying equipment is suitable for aseptic production, which can effectively guarantee the product quality and fully meet the GMP standards.

Application
DZG rotary vacuum dryer is used for vacuum drying and mixing powdery and granular materials in pharmaceutical, health care products, food, chemical and other industries.

Features
1.The manhole cover on the tank adopts arc transition, which can avoid dead angle and accumulations. Cover is equipped with vibrating copper hammer in order to achieve the effect of anti-sticking and shaking off materials.
2.This vacuum drying equipment uses steam or hot water heating, and rotary joint for mechanical seal, thus ensuring operation without leakage.
3.DZG rotary vacuum dryer should use three or multipoint metal sintering nets in order to prevent the traditional filter bag and the abrasive dust of sealing cover from falling off. The sintering nets are easy to disassemble and clean.
4.There is a temperature measurement table on the tank. It is convenient to observe and adjust the temperature at any time.
5.The tank is equipped with a vacuum feeding and discharging outlet, also as sample connection, convenient for feeding and taking samples.
6.This vacuum drying equipment adopt quick-opening manhole, easy to operate, maintain, clean and sterilize.

Technical Parameters of Rotary Vacuum Dryer

Model	DZG-100	DZG-200	DZG-300	DZG-500	DZG-800	DZG-1000
Full Volume (L)	100	200	300	500	800	1000
Working Volume (L)	≤ 50	≤ 100	≤ 150	≤ 250	≤ 400	≤ 500
Heating Area (㎡)	1.1	1.5	2	2.6	3.8	4.6
Rotating Speed (rpm)	0 to 12
Power (kw)	0.75	1.1	1.5	1.5	2.2	3
Design Pressure in Container (MPa)	-0.09 to 0.096
Interlayer Design Pressure (MPa)	≤ 0.3
Weight (kg)	600	750	900	1150	1400	1600

Founded in 2000, Jiangsu Yutong Drying Engineering Co.,Ltd. is a professional vacuum drying equipment manufacturer in China. We not only provide rotary vacuum dryer, but also have double cone vacuum dryer and vacuum harrow dryer. Additionally, Yutong supplies spray dryer, belt dryer, blending machine, granulating machine, grinding machine and so on. Till now, Yutong has exported rotary vacuum dryer to America, Britain, Germany, Cyprus, Turkey, Greece, Ukraine, Malaysia, India, Vietnam, Thailand, Bangladesh, Singapore, Taiwan, Nigeria and Mexico.
