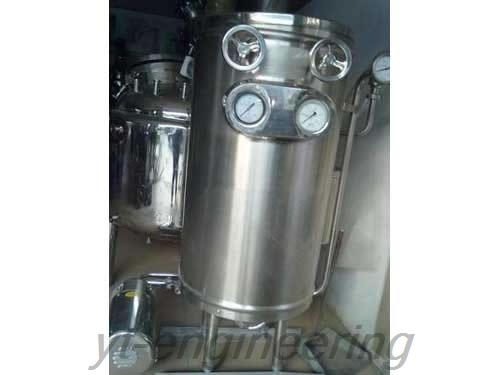

UHT Ultra High Temperature Instant Sterilizer

UHT Ultra High Temperature Instant Sterilizer

Description
Ultra high temperature instant sterilizer is applicable to instantaneous sterilization of liquid materials, such as fresh milk, juice, beverage, protein fluid, ice cream paste, soy sauce, soybean milk, condensed milk, alcohol, etc. This sterilizing machine can also be used for sterilizing fluid materials.

Features
1. The feeding and discharging of ultra high temperature instant sterilizer adopts three-way cock. The flow can be adjusted as needed, making it reliable to use.
2. This sterilizing machine realizes continuous production and short sterilization time. Thus, we can get high-quality products due to short heating time.
3. Ultra high temperature instant sterilizer adopts ultra high temperature for sterilization, resulting in excellent sterilization effect.
4. It has a wide range of applications. It can be used with centrifugal pump and high pressure homogenizer. This sterilizing machine is also suitable for sterilizing materials with high viscosity.
5. Designed with heat exchanger for cold and hot materials, ultra high temperature instant sterilizer utilizes waste heat and results in small steam consumption.

Technical Parameters

Model Material to be Processed Production Capacity T/H Material Inlet Temperature ℃ Material Sterilization Temperature ℃ Material Outlet Temperature ℃ Heating Medium and Inlet Temperature℃ Cooling Water and Inlet Temperature℃
UHT10 Beverage or Milk 1 25 115-135 ≤ 45 Steam 160 25
UHT20 Beverage or Milk 2 25 115-135 ≤ 45 Steam 160 25
UHT40 Beverage or Milk 3-4 25 115-135 ≤ 45 Steam 160 25
UHT-E10 (Electrical Heating) Beverage or Milk 1 25 115-135 ≤ 45 Conduction Oil 160 25
UHT-E20 (Electrical Heating) Beverage or Milk 2 25 115-135 ≤ 45 Conduction Oil 160 25
UHT-40 (Electrical Heating) Beverage or Milk 3-4 25 115-135 ≤ 45 Conduction Oil 160 25

Over the years, Yutong is devoted to development and production of sterilizing machines. We emphasize scientific and technological innovation, and we cooperate with many famous colleges to develop new products. Our ultra high temperature instant sterilizers are well received by more and more customers. Our company develops quickly and accumulates abundant capital and technology strength. We provide a variety of sterilizing machines for customers to test and inspect.
