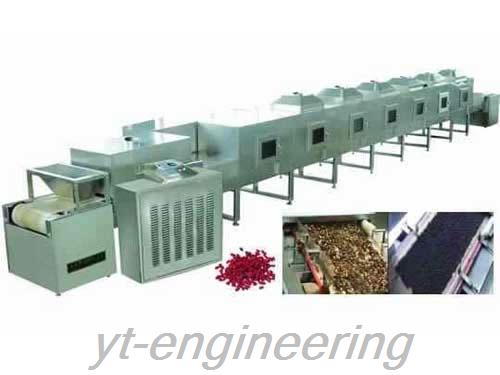

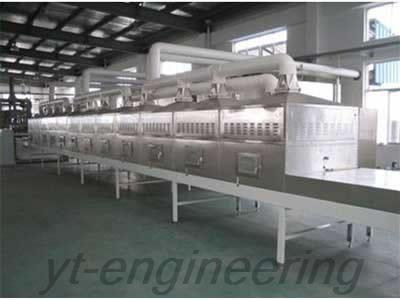

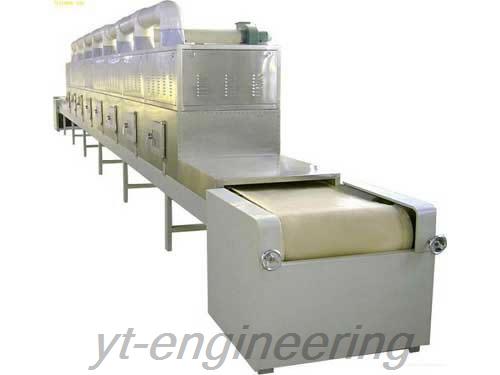

WSZ Microwave Sterilization Tunnel Oven

WSZ Microwave Sterilization Tunnel Oven

Introduction
WSZ microwave sterilization tunnel oven is a kind of tunnel type sterilizing machine. The usual thermal sterilization makes use of heat conduction to transfer heat from the material surface to the inside through convection or radiation mode. This method needs to take a long time to reach the sterilization temperature. However, microwave sterilization machine makes microwave energy directly affect bacteria in materials. Heat effect and non-heat effect are both effective, which makes it quickly heat up and shortens the processing time. The sterilization time of various materials is usually between three to five minutes. The sterilization temperature of tunnel type sterilizing machine is from 70℃ to 90℃.

Application
WSZ microwave sterilization machine is widely used for sterilization and drying various materials in food, pharmaceutical, agricultural and sideline products, such as spice, additive, protein powder, meat product, seafood, fish, fruit, beans, vegetables, fungus mushrooms, flour, starch, flour products, bean products, pickles, feed, nutrition, health care products or other materials.

Features of WSZ Tunnel Type Sterilizing Machine
1. WSZ microwave sterilization machine has automatic temperature control system, automatic control microwave density system, heating time control system, automatic alarm system and video monitoring system.
2. This tunnel type sterilizing machine is characterized by small occupying area, fast heating speed, even heating, good maneuverability and controllability, simple operation, energy saving and environmental protection, low cost, etc.
3. Transformer of microwave sterilization machine can be oil-immersed water cooled type, air-cooled type or self-cooled type. It can work for 24 hours continuously.
4. The leakage rate of microwave conforms to the national standard and American UL standard.

Parameters of WSZ Microwave Sterilization Machine

Model WSZ-1 WSZ-2 WSZ-3 WSZ-4
Working Frequency (MHz)                        2450 + 150 MHz
Microwave Output Power (kw) 9 kw, Controllable 12 kw, Controllable 24 kw, Controllable 48 kw, Controllable
Dewaterability (kg/kwh)                            1 kg/kwh
Width of Conveying Belt (mm) 450 450 450 450
Speed of Conveying Belt (rpm) 0.4-6 0.4-7 0.4-10 0.4-15
Input Power (kVA) < 15 < 20 < 40 < 80
Overall Dimension (mm) 6000 × 800 × 1500 8000 × 800 × 1500 10000 × 800 × 1500 16000 × 800 × 1500

Jiangsu Yutong Drying Equipment Co., Ltd is a professional manufacturer and supplier of tunnel type sterilizing machines in China. In addition, we also provide grinding machine, granulating machine, extractor and concentrator equipment. Our company has been awarded as “AAA” enterprise by Jiangsu International Credit Assessment Company. Our microwave sterilization machines are highly appraised by customers worldwide.
