HG Rotary Drum Dryer

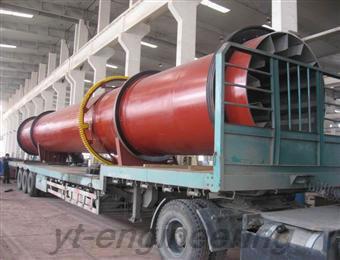

Description

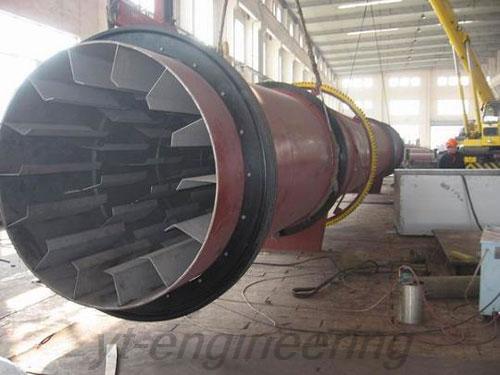

After the wet materials are fed into the rotary drum dryer, they are stirred by the shoveling plates and uniformly distributed in the cylinder. Then the materials fully contact with cocurrent of counter-current hot air, thus accelerating heat transfer and mass transfer. During the drying process, the materials under the effect of titled shoveling plates and hot air can move to the discharge valve at the other side of the cylinder dryer and finally be discharged.

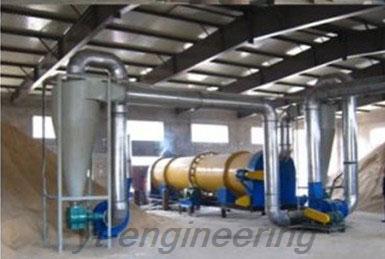

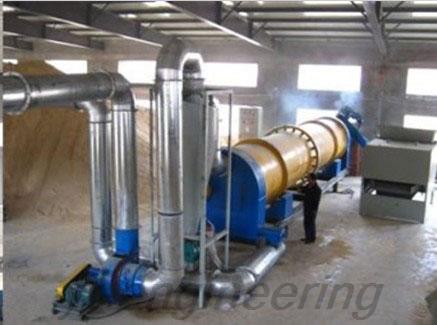

Application
1.HG rotary drum dryer is designed to dry large particles, such as ore, blast furnace slag, coal, metal powder, phosphate fertilizer and ammonium sulfate in the chemical, mining, metallurgical and other industries.
2.This drying equipment can be used for drying special powdery and granular materials, including HP foaming agent, vinasse slag, light calcium carbonate, activated clay, magnetic powder, graphite and dregs.
3.HG cylinder dryer can dry the materials that require low temperature and continuous drying.

Features
1.HG rotary drum dryer possesses high level of mechanization and large production capacity.
2.This drying equipment has strong applicability to the material properties.
3.This drying machine can designed with multilayer inner sleeve structure. So the staying time of the material can be longer and the production capacity can be greatly enhanced.
4.Our rotary cylinder dryer has the advantages of stable operation, low operating cost and good drying uniformity.

Parameters of HG Rotary Drum Dryer

Model	Production Capacity (t/h)	Cylinder Speed (r/min)	Motor Power (kw)	Installation Angle (°)	Discharging Material Humility
HG1.0	0.5-1.2	0.6-6	4	3-5	≤1.5%
HG1.2	1.5-3		5.5
HG1.5	3-5.5		15
HG1.8	5-6.5		18.5
HG2.2	7-12		22
HG2.4	9-15		30
HG3.0	16		55

Drying Cases of Rotary Drum Dryer

Type	Direct Heating Cocurrent	Direct Heating Cocurrent	Direct Heating Counter-Current	Direct Heating Counter-Current	Composite Heating	Composite Heating
Material Category	Ore	HP foaming agent	Blast furnace slag	Ammonium sulfate	Phosphate fertilizer	Coal
Handling Capacity (kg/h)	1000	466	15000	20000	5000	1000
Initial Water Content (%)	30	13	6	1.5	6.5	30
Final Water Content (%)	15	0.3	1	0.1	0.1	15
Average Particle Size (mm)	6.5	0.05	4.7	0.5-1.7	5	6.5
Material Accumulation Weight (kg/m2)	770	800	1890	1100	750	770
Hot Air Volume  (kg/h)	39000	5400	10750	9800	16000	39000
Inlet Air Temperature (℃)	600	165	500	180	570	600
Outlet Air Temperature (℃)	150	42	100	70	75	150
Heating Method	Gas	Steam, electrical heating	Heavy oil	Coal hot air furnace	Heavy oil	Heavy oil
Loading Coefficient (%)		6.3	7	7.5	18
Rotating Speed (rpm)	4	4	3.5	3	2	4
Gradient (mm)	0.04	0.005	0.03	0.05	0.043	0.04
Number of Shoveling Plate	12	24	12	22	Outside 8, inside 16	6, 12
Dryer Diameter (m)	2.0	1.5	2	2.3	Outer cylinder 2 inner cylinder 0.84	Outer cylinder2.4 inner cylinder 0.95
Dryer Length (m)	20	12	17	15	16	2.0
Driving Power (kw)	22	7.5	15	11	15	22

As a drying equipment supplier, Yutong mainly provides rotary drum dryer, spray dryer, belt dryer, vacuum drying machine, air stream dryer, fluidized bed dryer and cylinder dryer. Additionally, we have mixing machine, granulating machine, coating machine and grinding machine to meet different demands of customers. Our rotary drum dryers sell well in America, Britain, Germany, Greece, Ukraine, Malaysia, India, Thailand, Bangladesh, Singapore, Nigeria and Mexico.
